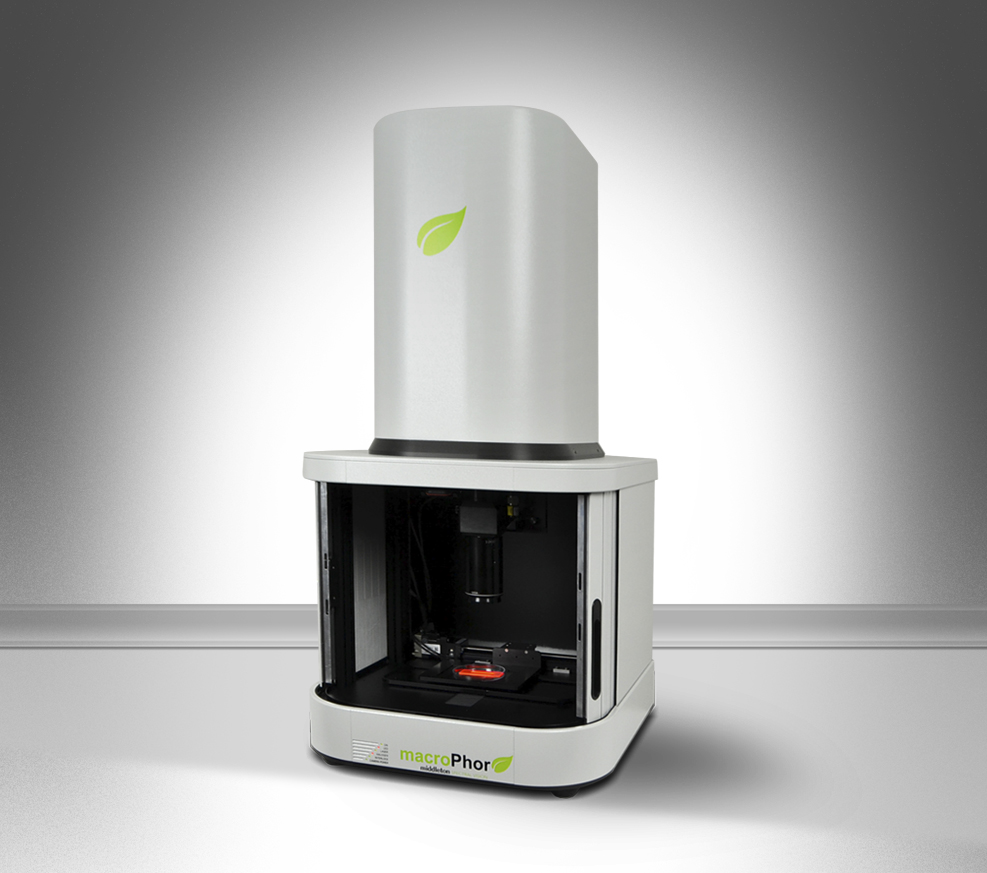

macroPhor™ Lab Hyperspectral Fluorescence Imaging System
The macroPhor™ Hyperspectral Fluorescence Imaging system is optimized for samples that are too large for standard microscope analysis. The system employs a unique hyperspectral fluorescence camera to acquire images. The resulting hyperspectral fluorescence image contains both spatial and spectral information about the sample. The user can interrogate these data for pure component identification and develop classification methods for future measurements.

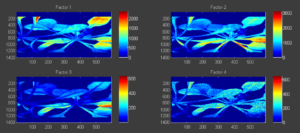

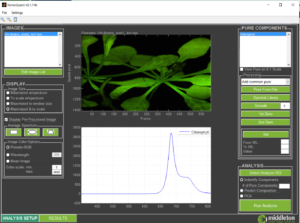

The macroPhor™ Fluorescence Imaging system is a unique instrument optimized for samples that are too large for standard microscope analysis. The macroPhor™ uses hyperspectral imaging technology to deliver stunning images that contain spectral information at each pixel. Users can probe the image for different spectral features or use one of three chemometric methods to extract pure components.
A key advantage for the macroPhor™ is the ability to acquire spectra over a broader wavelength range compared to filter based fluorescence systems. Each pixel of the macroPhor™ fluorescence image contains spectra from 400 up to 800nm.This gives users the ability to see spectral features that would not be present in a filter based system. The macroPhor™ is an excellent tool to distinguish multiple fluorophors.
Optical
-Field of View Options:
- 7 mm FOV at 34 mm working distance using a 2X infinity-corrected
Mitutoyo apochromatic objective - 22 mm FOV at 3 in. working distance using a macro lens

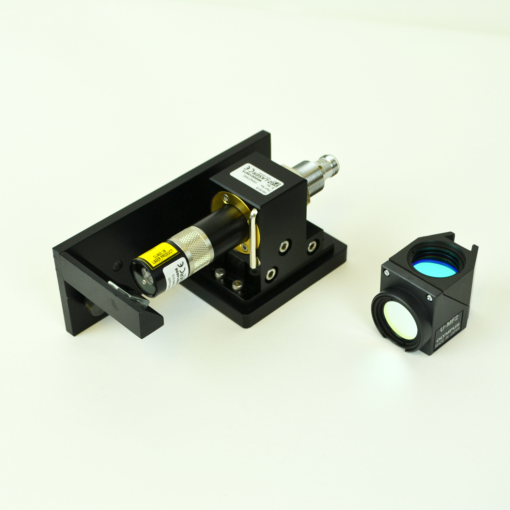

-Excitation Source: 488 nm (Default), Max laser output: 30 mW
-Sensor: MRC-923-001 High-Sensitivity VNIR Hyperspectral Camera
-Optical Resolution: 7.5 nm (Default)
-Spatial Resolution: 2000 pixels
Mechanical
-Dimensions: Approximately 15” (W) x 20” (D) x 30” (H)
-Sample Stage Options:
- 96-well plate, 24-well plate holders
- Open Tray
- Microscope Slide Mount
-Stage Movement:
- Motorized scan direction (X)
- Motorized across-stage direction (Y)
- Motorized focus adjustment (Z)
Other magnifications, optical resolutions, and different excitation wavelengths are available with additional optical components. Contact a product specialist at Middleton Spectral Vision for more information or to discuss the specs of the application.
