macroPhor™ Flatbed HSI Hyperspectral Fluorescence Imaging system

 An inverted hyperspectral imaging system for macro samples

Description

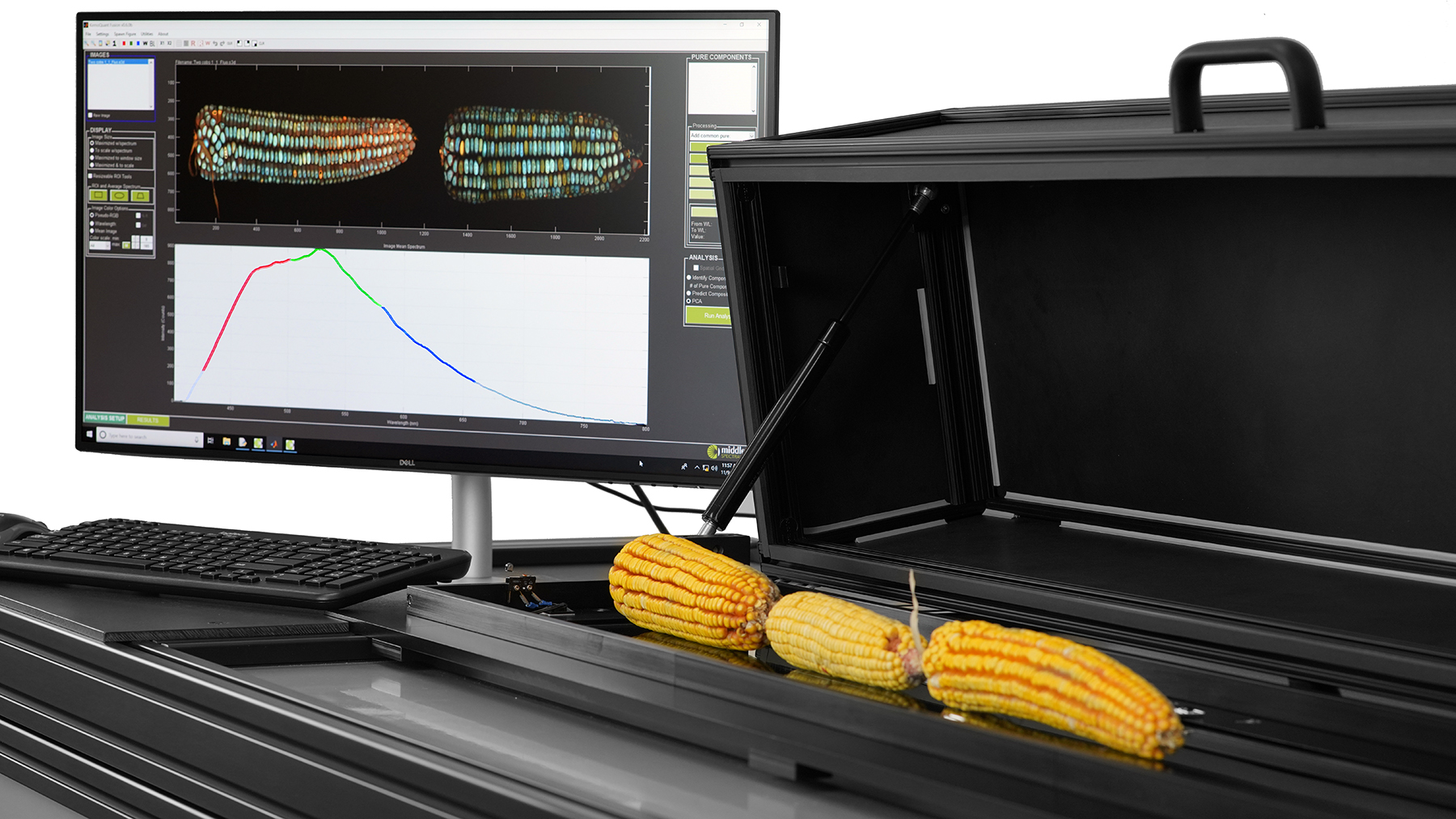

Hyperspectral Fluorescence Image of a hybrid corn – courtesy of the University of Wisconsin

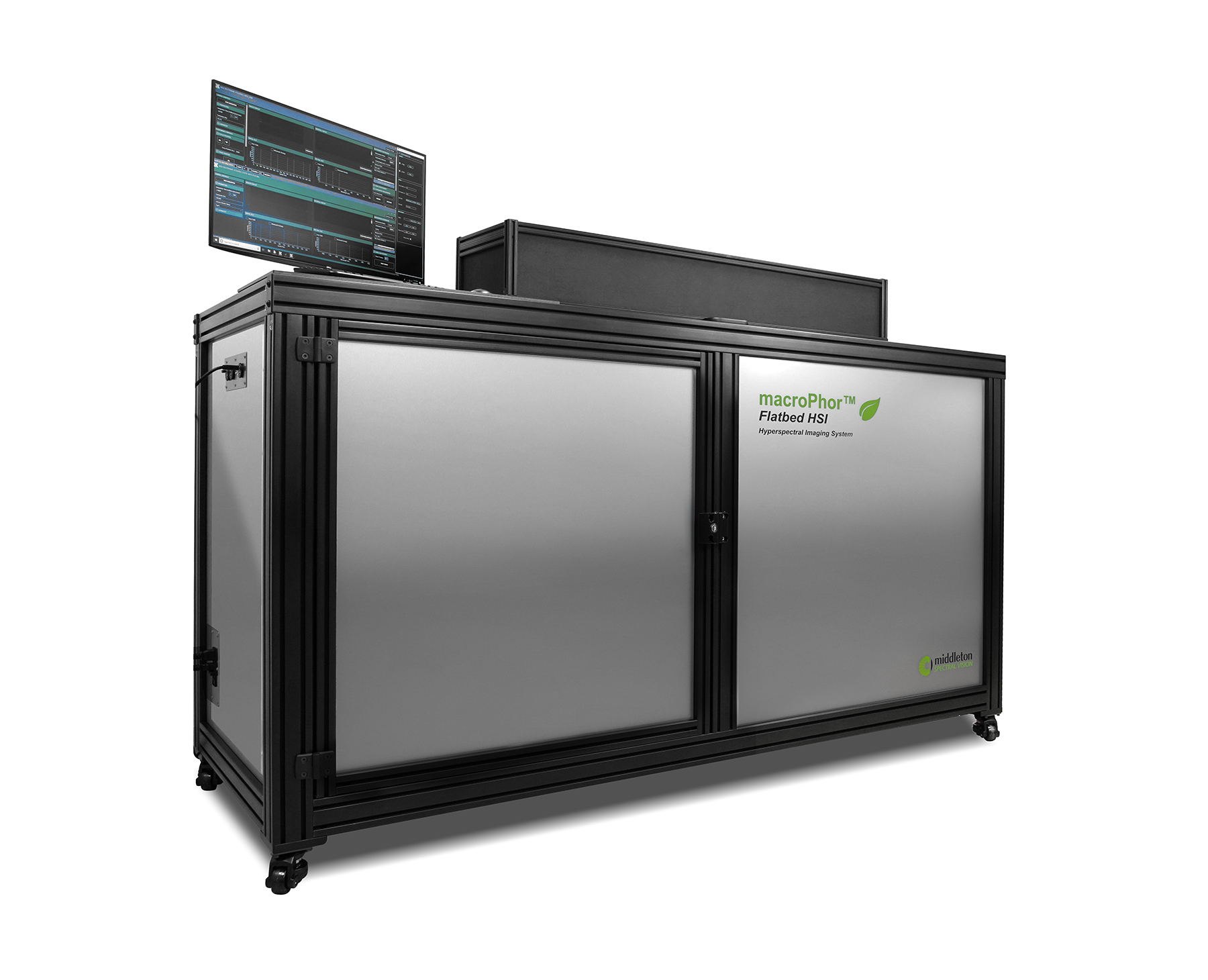

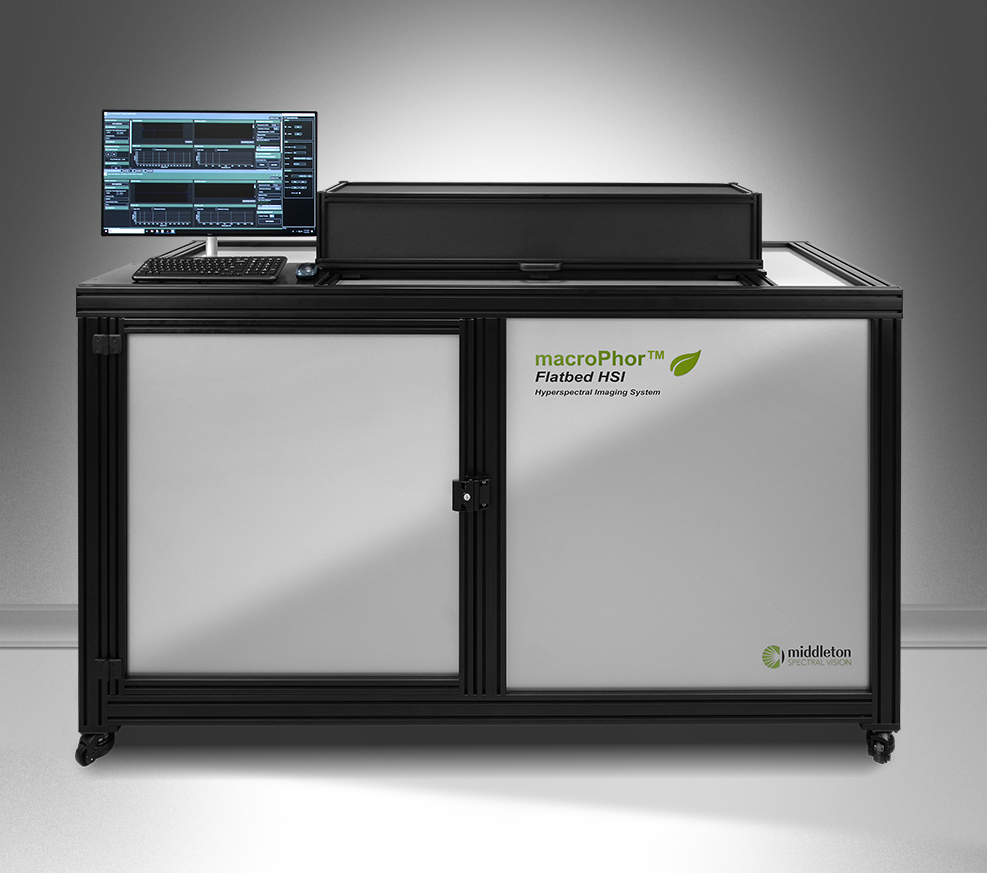

MacroPhor™ Flatbed HSI is a flatbed scanner that features a 40 inch long by 4 inch wide glass surface for easy sample placement. Place your sample directly on the glass and start scanning. Camera optics are focused at the plain of the glass to produce crisp in focus images every time.

Sample specimens can include plants and plant materials, minerals, small animals, food and insects to name a few. Fixed laser wavelength excitation illuminates the sample in a line while scanning the image. Multiple laser wavelength sources are available and include 405nm, 488nm , 532nm and 640nm. Laser sources are mounted in an interchangeable mount that makes it easy to switch between wavelengths.

Flatbed HSI supports up to two cameras for concurrent imaging. Camera combinations can include Fluorescence, VNIR, NIR or SWIR cameras.

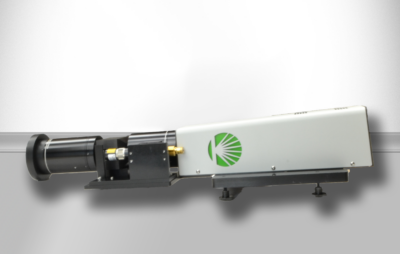

NIR and Fluorescence spectral camera configuration

macroPhor™ Interchangeable Laser Module with Filter Cube





MacroPhor™ Flatbed HSI Specifications

Sample Stage – Flatbed , Glass plate 40 inches long by 4 inches wide

Illumination – Halogen for VNIR, NIR SWIR cameras, LED for RGB and Laser for Fluorescence

Camera and laser options:

  Camera 1 Camera 2
VNIR-NIR VNIR 400-1000nm NIR 900-1700
VNIR-SWIR VNIR 400-1000nm SWIR 1000-2500
Fluorescence -NIR Fluorescence – 400-800nm Laser wavelength options

405nm,488nm, 532nm,640nm

NIR 900-1700
Dual Fluorescence Fluorescence – 400-800nm Laser wavelength options

405nm,488nm, 532nm,640nm

Fluorescence – 400-800nm Laser wavelength options , 405nm,488nm, 532nm,640nm
Fluorescence – RGB Fluorescence – 400-800nm Laser wavelength options

405nm,488nm, 532nm,640nm

High resolution RGB (24 MPixels)

Download individual camera specification sheets for details on specific cameras
