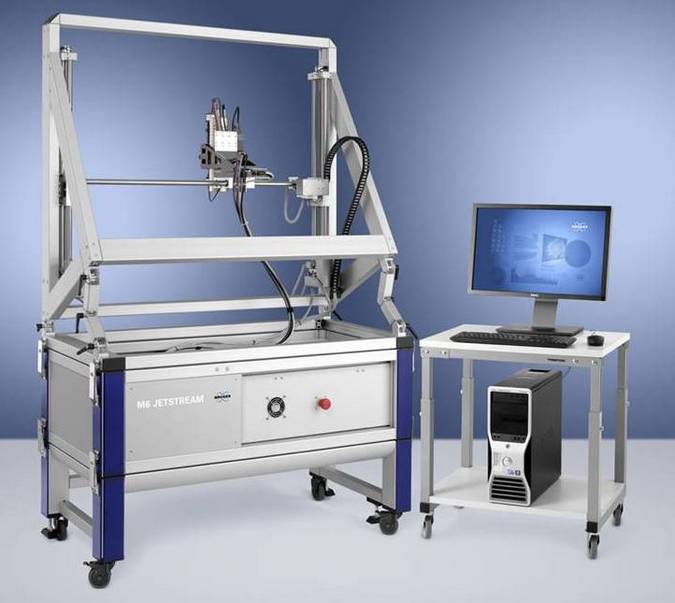

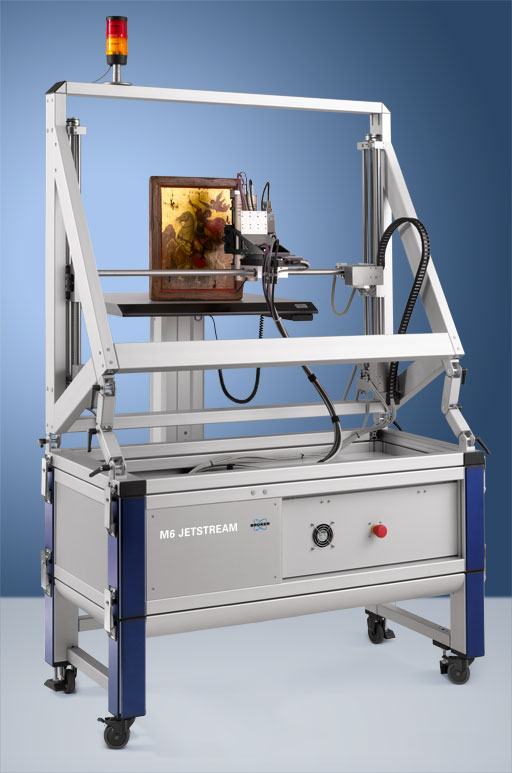

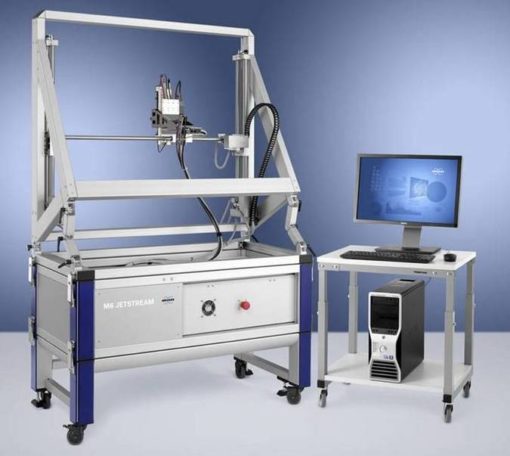

The Bruker M6 JETSTREAM is a micro-XRF analyser for high performance element distribution analysis of large samples.

SKU: MRC-M6 Category: Tags: ,


The Bruker M6 JETSTREAM  can be easily moved around an art gallery, museum or shop floor to scan large samples. The scan area is 800mm x 600mm with a variable spot size down to 100 µm and speeds of up to 100 mm/s .The pixel dwell time is as short as 1 ms, for “on-the-fly” analysis.


Key features and Benefits:

  • Convenient mobile rig
  • Scan samples vertically or horizontally by tilting the measurement rig
  • Disassemble into four parts for transporting
  • Adjust the spot size for different sample structures and variable spatial resolution
  • Safety circuitry to prevent exposure to X-rays
  • Ultrasound distance measurement safeguards against collision with the sample
  • High count rate  and high energy resolution over a wide count rate range, with Bruker’s advanced XFlash® silicon drift detectors (SDD)

Analytical Applications

  • Cultural heritage science eg pigment distribution on paintings
  • Geoscience eg drill cores, geological samples
  • Failure analysis eg flaws, inhomogeneities
