FENIX Broad Range Spectral Camera (400-2500nm)

FENIX Cased Spectral Camera with M-Series spectrographs and combined objective lens for VNIR and SWIR wavelengths; CMOS + MCT, Cameralink x 2

SKU: MRC-319-009-01 Category:

Description

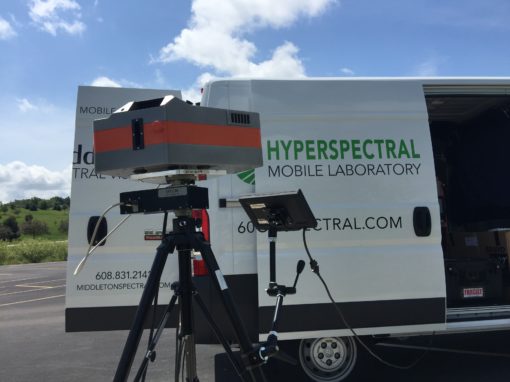

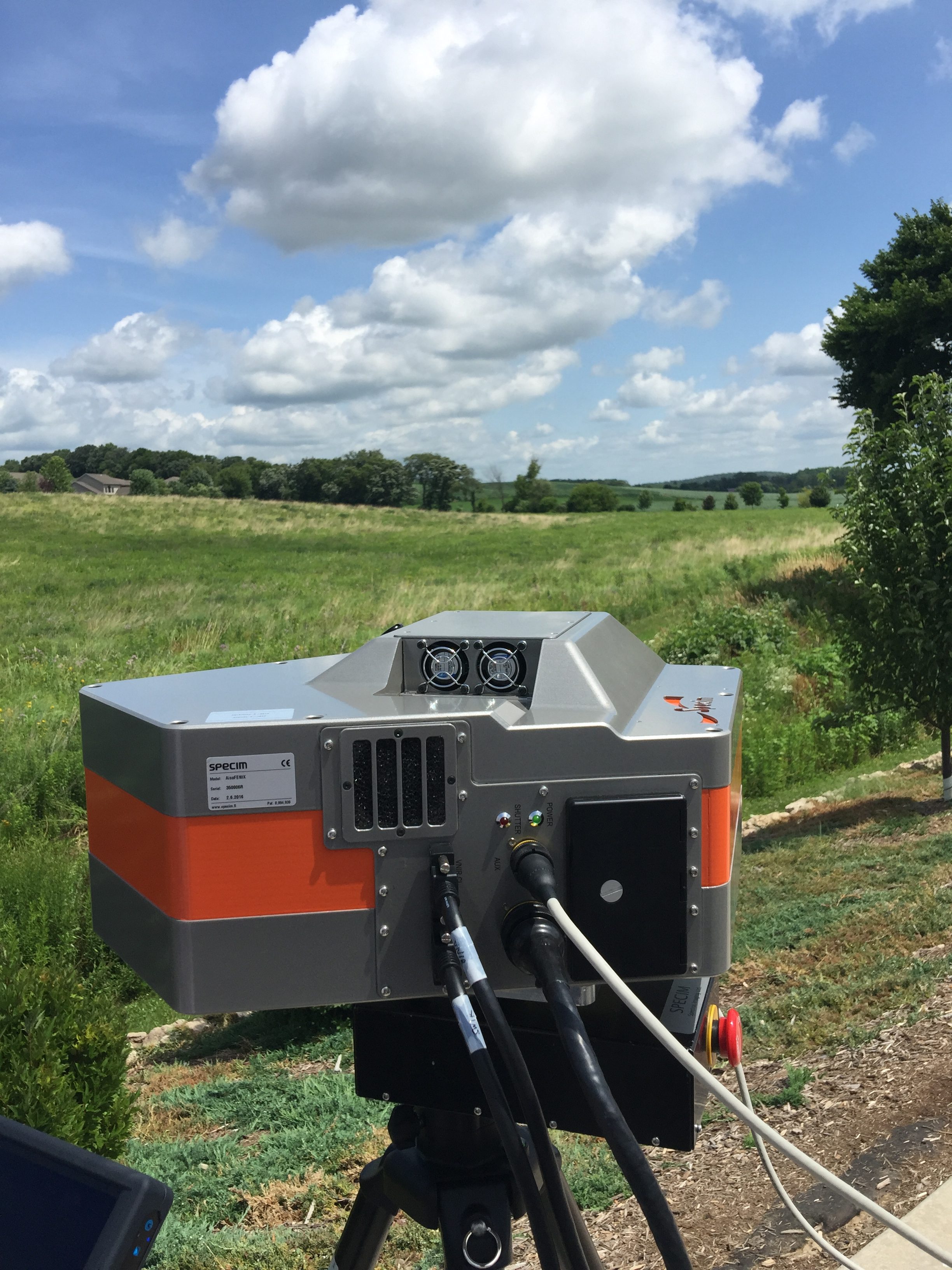

AisaFENIX Broad Range Spectral Camera

The FENIX is a complete multi-purpose, turn-key hyperspectral imaging instrument designed for airborne and ground-based use. It works in push-broom mode and collects hyperspectral data both in the VNIR (380 to 970 nm) and SWIR (970 to 2500 nm) region through single fore optics.

The FENIX offers a number of unique advantages that include:

  • Wide continuous spectral range (380-2500 nm) in a single instrument, entire 380-2500 nm data collected in a single data cube.
  • Simplicity and reliability in operation, no need for co-alignment of two separate optical systems with different distortions, image sharpness, and FOV.
  • Co-registered VNIR and SWIR pixels simplify data processing.
  • High radiometric stability, repeatability, and performance, polarization independency, high signal-to-noise ratio (SNR 500:1 to 1000:1), and spectral resolution (620 bands).
  • Compact and solid structure – 75% reduction in size and weight compared to previous dual sensor VNIR+SWIR systems. Ideal for ground, vehicle and airborne installations, including stabilized turrets, gimbals, pan&tilt platforms, and unmanned vehicles.

AisaFenix Specifications

Optical characteristics
Spectral range
VNIR Channel – 380-970 nm
SWIR Channel 970 – 2500 nm

Spectral resolution
VNIR channel – ≤ 3.5nm (30 µm slit)
SWIR Channel – ≤ 10 nm (30 µm slit)

Spatial resolution
VNIR Channel – RMS spot diameter <30µm SWIR Channel - RMS spot diameter < 31 µm Aberrations VNIR channel - Keystone <4 µm Smile < 0.5 µm Distortion < 8.5 pix SWIR Channel - Keystone < 3.5 µm Smile < 0.7 µm Distortion < 8.5 pix F -number VNIR Channel - 1.6 SWIR Channel - 2.4 Magnification VNIR Channel - 0.667 SWIR Channel - 1.0 Reciprocal dispersion VNIR Channel - 106.6 nm/mm SWIR Channel - 193.7 nm/mm Polarization sensitivity VNIR Channel - <2.5 % SWIR Channel - <2 % Stray light (with notch filter) VNIR Channel < 0,6% SWIR Channel < 0.6 % FOV - 32.3 degrees Hyper-focal distance - 4 m Focusing distance - 1 m to infinity Camera specifications: Sensor type VNIR Channel CMOS SWIR Channel MCT Pixel size VNIR Channel - 16x16 um SWIR Channel - 24x24 um Number of spatial pixels VNIR Channel - 384 SWIR Channel - 384 Number of Spectral pixels covering the specified wavelength range: VNIR Channel - 370 SWIR Channel - 280 Spectral sampling/pixel VNIR Channel - 1.75 nm SWIR Channel - 6 nm Frame rate max. VNIR Channel – 120 SWIR Channel - 120 Camera control VNIR Channel CameraLink SWIR Channel CameraLink
